Louvre Grilles

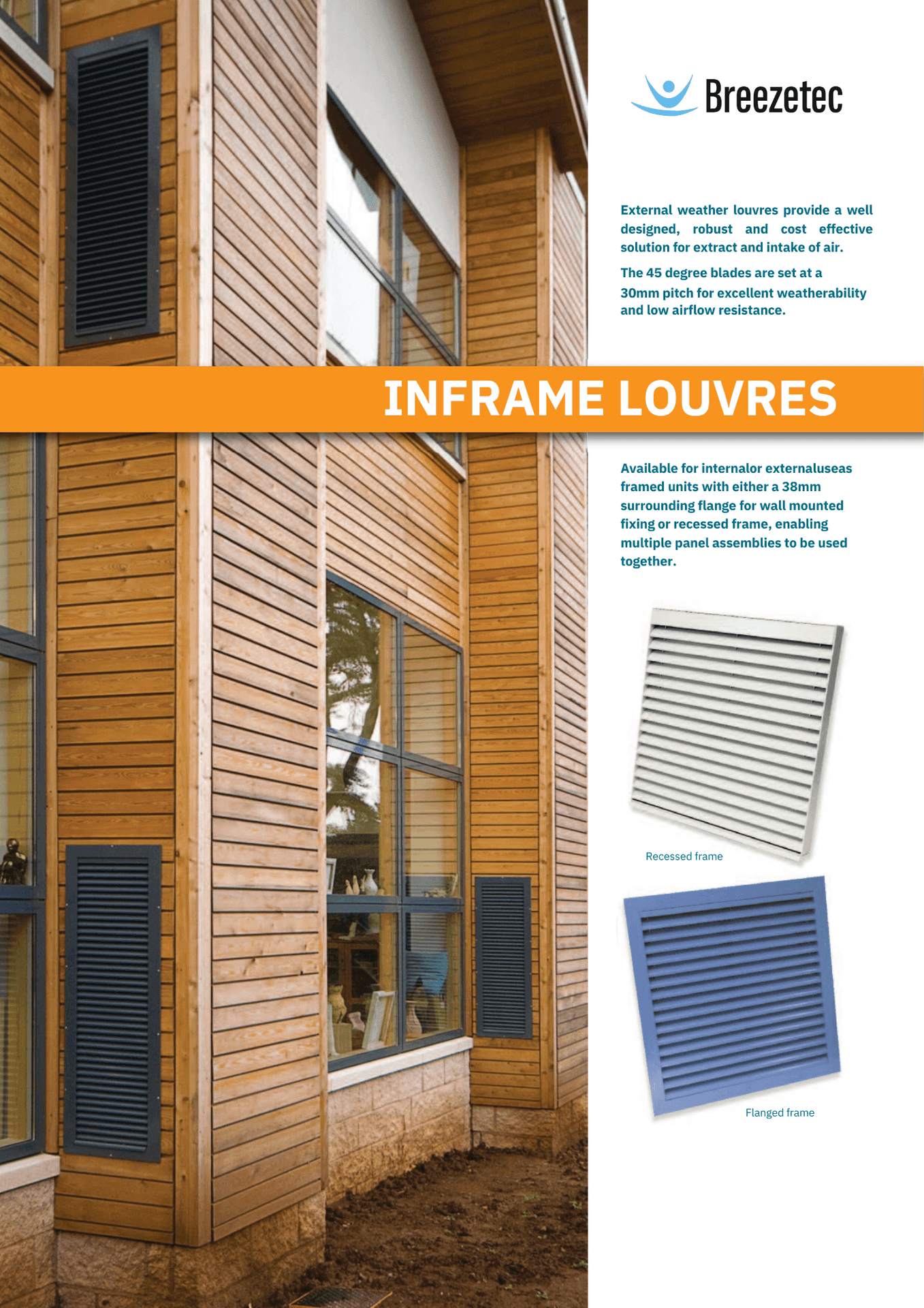

Available for internal or external use as framed units with either a 38mm surrounding flange for wall mounted fixing or recessed frame, enabling multiple panel assemblies to be used together.
Screening Louvres

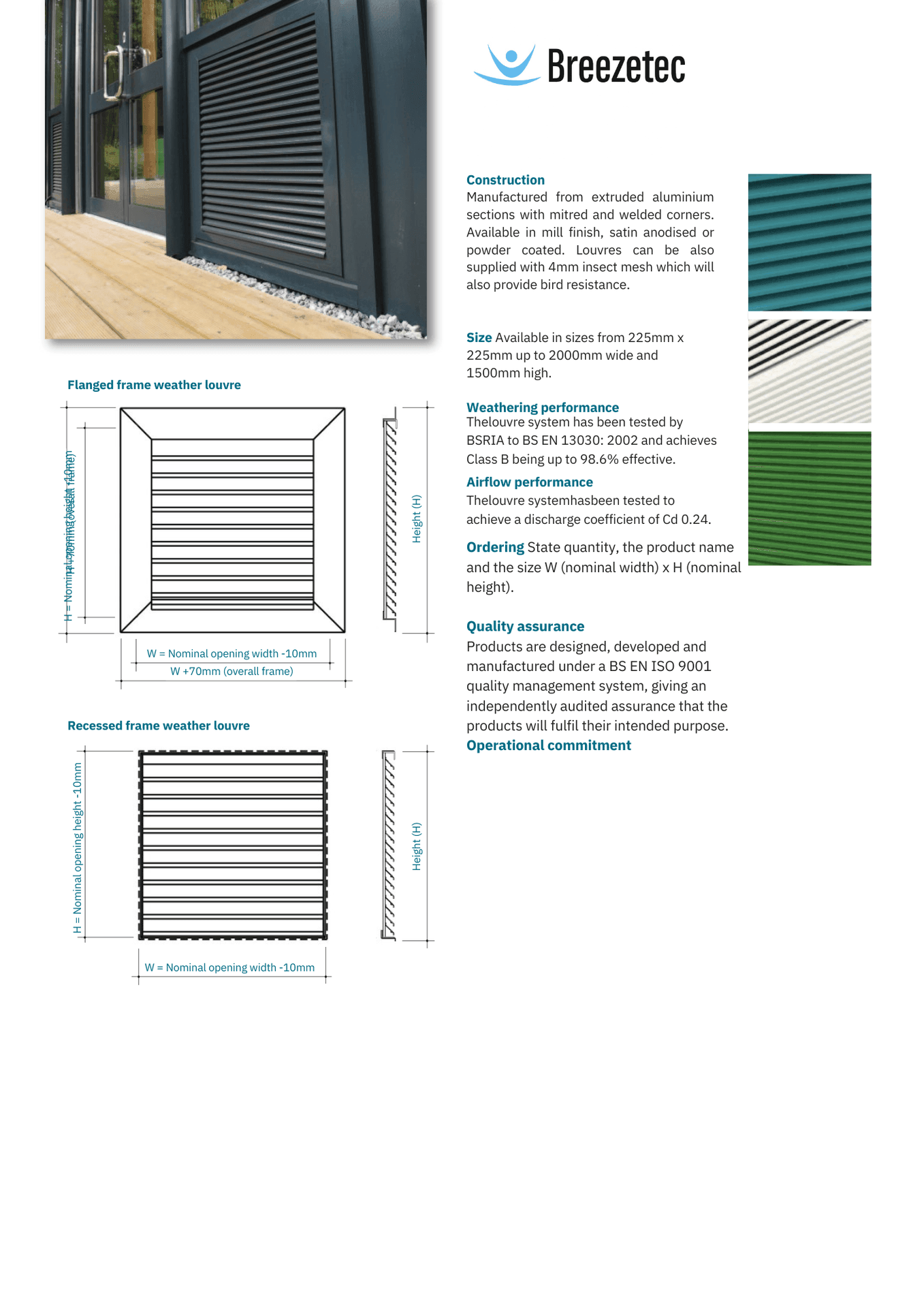

Construction
Manufactured from extruded aluminium
sections with mitred and welded corners.
Available in mill finish, satin anodised or
powder coated.
Louvres can be also supplied with 4mm
insect mesh which will also provide bird
resistance.
Size
Available in sizes from 225mm x 225mm
up to 2000mm wide and 1500mm high.
Weathering performance
The louvre system has been tested by
BSRIA to BS EN 13030: 2002 and achieves
Class B being up to 98.6% effective.
Airflow performance
The louvre system has been tested to
achieve a discharge coefficient of Cd 0.24.
Ordering
State quantity, the product name and the
size W (nominal width) x H (nominal height).
Quality assurance
Kingfisher products are designed,
developed and manufactured under a
BS EN ISO 9001 quality management
system, giving an independently audited
assurance that the products will fulfil their
intended purpose.
